Description

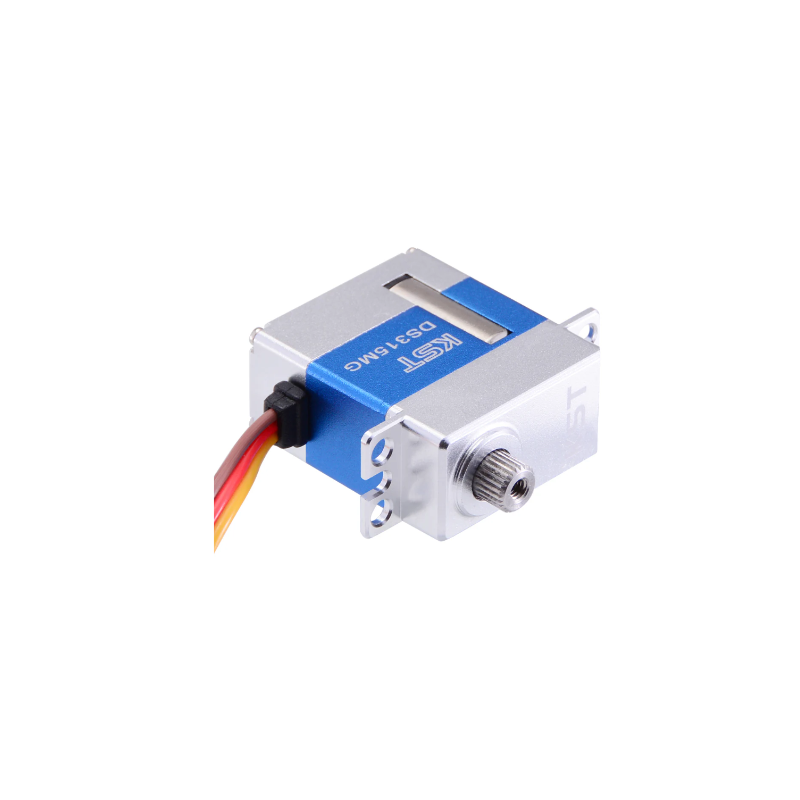

mini digital servo metal gear KST DS315MG V8.0 Mini Digital Metal Gear Coreless Servo 4.8kg 0.07secDS315MG has a hardened steel drive train and a coreless motor capable of running from 4. 8V to 8. 4V (4 cell NiMH to 2S LiPo) meaning these servos will deliver the power and reliability you need. They are super high speed with pretty good torque. Features CNC Aluminium Case Programmable 2 Ball Bearings With 12mm Coreless Motor High Precision Metal Gear Large Stall Torque of 4. 8Kg Lightweight and Compact Design Specification Item: DS315MG V8. 0 Mini
DS315MG has a hardened steel drive train and a coreless motor capable of running from 4.8V to 8.4V (4 cell NiMH to 2S LiPo) meaning these servos will deliver the power and reliability you need. They are super high speed with pretty good torque.
Features
- CNC Aluminium Case
- Programmable
- 2 Ball Bearings
-
With 12mm Coreless Motor
-
High Precision Metal Gear
-
Large Stall Torque of 4.8Kg
- Lightweight and Compact Design
Specification
- Item: DS315MG V8.0 Mini Servo
- Rated Voltage: DC6.0V
- Voltage Range: DC4.8V-8.4V
- Torque: [email protected] / [email protected] / [email protected] / [email protected]
- Speed: 0.10sec/60°@4.8V / 0.09sec/60°@6.0V / 0.08sec/60°@7.4V / 0.07sec/60°@8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±70°=140° Total
- Temperature Range: -20℃……+65℃
- Soft Start: Programmable
- Programmable: Yes
- Case Material: Aluminium Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Hardened Steel
- Position Sensor: Potentiometer
- Ball Bearing: 2BB
- Case Dimensions: 23mm*12mm*27.5mm±0.2mm
- Weight: 20g±10%
